One of the most important sections of a project is the POWER SUPPLY. It will determine if  everything works correctly. It is simply the most important part.
A power supply is also called a PSU (Power Supply Unit) or Power Supply Module.


All projects need a Power Supply

Power supplies come in all different sizes, from very simple to extremely complex:

Quite often, we don't realise how important they are.
Some projects work on batteries, some from a plug pack and some from the mains.  We just turn them on and expect them to work.
But what about the thought that has gone into designing a power supply?
It's an art to design a good power supply and it's a specialist field. Some companies concentrate only on power supply design, from a 1watt potted device to an un-interruptible power supply of several kilowatts.

The simplest power supply is two cells connected to a project. We will start with this and show
the thought that goes into designing it.
The correct design of a power supply requires an understanding of many terms and we have discussed some of them on the previous pages of this course. Those terms will now be needed.
Fortunately a number of chips and modules have come on the market to make designing a power supply a lot easier and one of the handiest components is the plug-pack.
It is simply a transformer in a plastic box with a plug on the side so it can be plugged directly into a power-point. This saves dealing with the mains voltage and provides guaranteed insulation.
But the biggest problem with a plug-pack is its "over-rating."
They do not supply the current stated on the label and don't make a very good device for powering a project. However with the advent of regulator chips, plug packs can be used very successfully.
That's why you need this discussion. You need to know how to interface a plug pack to a project and lots of other things relating the absolutely beginning of designing a power supply.
The first thing you need to understand is the meaning of IMPEDANCE. It is the most important feature of a power supply. It is the same as the "strength" of a bridge or skyscraper.


IMPEDANCE
A power supply must have low impedance.
By this we mean:
A power supply must have low-resistance components in the CURRENT PATH. The current path starts at the 0v rail, through the secondary winding of the transformer, through the diode and regulator (or transistor) and through any resistor on the positive rail. This path supplies the current and any component with a high resistance will create a voltage-drop across it (when the high current flows) and the output voltage will be reduced.

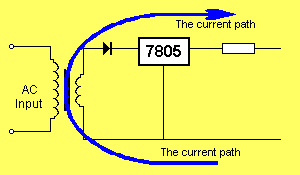

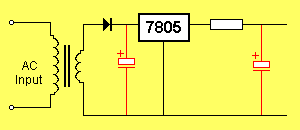

The following shows the "current-path" we are discussing:


The Current Path

This is the path to look for when servicing a power supply. It is the path that will pass (deliver) the current.
Between the positive and negative rail we need a high-value electrolytic to reduce the impedance of the power supply even further.


Electrolytics reduce the impedance
of a power supply

An electrolytic is similar to a shock-absorber in a car. Without a shock-absorber, you will be able to push say the front-left part of a car up and down in a "bouncing" motion. This is the same as the output rail of a power supply. When the electrolytic is added, the rail does not move up and down. The electrolytic also adds to the ability of a power supply to deliver a high current. It is really an amazing component.

If a power supply cannot deliver a high current, the voltage on the output will drop and this can cause distortion or faulty operation of the rest of the project.

THE SIMPLEST POWER SUPPLY
The simplest power supply is a cell or battery. A cells is either 1.5v (or 3v). A battery is a number of cells.
The term IMPEDANCE still applies and the CURRENT PATH is though the cell or battery.


The current path

A new cell or battery has a low impedance as proven by its ability to deliver a high current.
As the battery gets older, the voltage across its terminals reduces and the maximum current it can deliver also reduces.
The reason is the active chemicals get used up, and the resistance of the by-products is higher.
All projects work perfectly with a new battery, but unless you remember some simple rules for correct designing, a new battery can still cause problems.
When deigning high frequency projects such as 100MHz "bugs" or FM transmitters, the leads to the battery must be as short as possible to keep the impedance of the power supply LOW.
Here is an example:

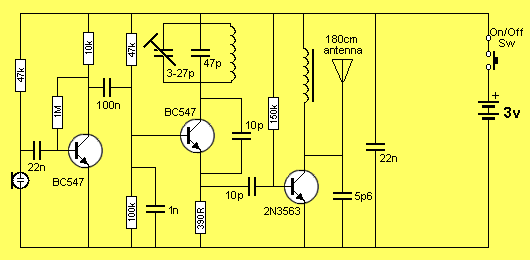

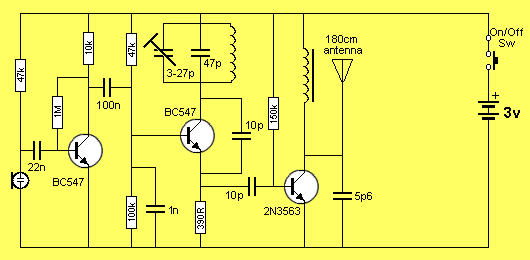

This FM transmitter circuit does not work:

The 3v supply is too far from the circuit. The circuit is operating at approx 100MHz and the power-rail is moving up-and-down at this frequency and becomes an ANTENNA!  It begins to radiate electromagnetic waves and in the process becomes a HIGH IMPEDANCE line.
In other words it becomes a high resistance line and a voltage develops on it that opposes the 3v supply.
The current reduces and the circuit does not get the required energy from the battery.
This is equal to the power supply having a HIGH IMPEDANCE.
The impedance can be reduced by adding a capacitor across the power rails.
The performance of the following circuit will improve:




By placing the 3v supply very close to the circuit, the performance will increase enormously:

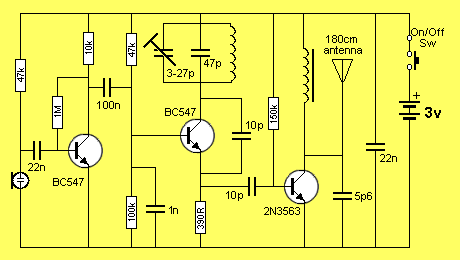

To keep the impedance of a power supply LOW, we need to:
(a) Add an electrolytic - for low-frequency circuits,
(b) Add a capacitor - for high-frequency circuits, and
(c) keep the leads short.


Keeping the impedance LOW

HOW THE CAPACITORS WORK
 The capacitor or electrolytic across the battery is effectively a miniature battery with a very low internal resistance and is capable of delivering a very high current for a very short period of time.
When the project does not require a high current, the rail voltage is a maximum and the electrolytic or capacitor charges.
When the project requires a heavy current, the rail voltage drops slightly and the voltage across the electrolytic is higher and it begins to deliver its energy to the rail.
An electrolytic takes time to charge and discharge so it is only suitable for low-frequency fluctuations. A ceramic capacitor can be charged and discharged at a high rate and thus it is suitable for high-frequency fluctuations. By adding both to the power rail, we cater for the full range of frequencies.

0.7v DIODE DROP
Next we can add a diode to convert a 6v supply to 5.3v.
TTL chips require a 5v supply and will operate up to a maximum of 5.5v.
The following circuit shows a diode added to the positive rail.
A "normal" power diode drops 0.6v to 0.7v when it is conducting. This is called the "characteristic" voltage drop of a diode.



Adding a diode to produce a 5.3v rail

The diode also provides protection from reverse voltage:


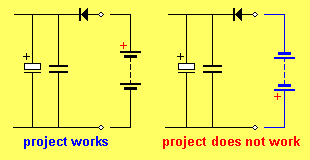

Reverse-voltage protection

If you need the full battery voltage to be delivered to the circuit, the diode can be placed as shown and a fuse added. If the battery is connected incorrectly, the fuse will blow.


Reverse-voltage protection


ZENER DIODE REGULATION
The simplest regulator is a zener diode. It is called a SHUNT REGULATOR as it goes directly across the power rails. It is a very wasteful way to produce a steady voltage.


A zener diode shunt regulator

With a zener diode shunt regulator, current is flowing through the zener at all times and this is wasted current. If the main circuit requires no current, the zener consumes all the current.
If the main circuit requires a small amount of current this current actually comes from the zener. In other words the zener takes slightly less current and this current is exactly the amount required by the main circuit.
The zener works like this: When the main circuit starts to take a small amount of current, this current flows through the dropper resistor. This causes a slightly higher voltage to appear across the dropper resistor. This means the voltage across the zener is slightly less.
When the voltage across the zener is reduced slightly, the zener "turns off" a small amount and it allows slightly less current to flow through it.
This current is exactly the same amount of current required by the main circuit.
The same amount of current is always taken from the battery, it just gets diverted from the zener to the project. The following diagram shows how the current is divided between the load and the zener:


The current is divided between
the project and zener


A zener diode is only suitable for small values of current.
It works like this:
If a project takes 10mA when idle and 100mA when processing a signal, the range is 90mA.
If the rail voltage is 12v, the zener will be required to pass 90mA when the project is idle and 10mA when operating.
The wattage rating of the zener will be 12 x 0.9 = 1.08watt.   Use 1watt zener.
If another project takes 350mA @ 12v when idle and 440mA when operating, the difference is 90mA and the same zener can be used.
The dropper resistor also represents waster power and its value is worked out as follows:


The resistance of the
dropper resistor

The wattage = V x I = 2 x 0.1 = 200mW

TRANSISTOR SHUNT REGULATOR
In place of the zener diode we can use a transistor. It is still the same wasteful design but the rail voltage can be set via two resistors and this saves stocking lots of different voltage zeners.
You will notice, we are adding components to create improvements to power-supply designs  and this is the best way to understand how a power-supply works.


A transistor shunt regulator

The analysis and design of the circuit above starts with resistor Rb.
When the voltage across this resistor reaches 0.65v, the transistor starts to turn on and pull the regulated rail to the desired voltage.
In other words, the only two critical values are: the value of Rb and the characteristic voltage between the base and emitter of the transistor (0.65v).
Nothing else matters! Isn't that a surprise!
Once you know the secret of where to begin, things start to make sense.
Now we come to the skill of working out the value of Ra and Rb to produce a voltage of 0.65v at the join.
Suppose we require 5v for the regulated rail.
We have the following circuit:


The voltage-divider Ra:Rb

To work out the value of Ra and Rb, we need to know the current flowing through the voltage divider. This is a technical decision. In other words you have to decide what current you want to flow through the divider. Theoretically it can be ANY VALUE.  That's right, it can be any value above a certain minimum. To arrive at the minimum value we need to know the current flowing through the regulator transistor (we will assume 100mA).
If the gain of the transistor is 100, the base current needs to be 1mA.
This means 1mA must flow through Ra.


This value is non-standard.
Use a standard value. Select 3k9.

The value of Rb:


Use a 560R and 33R in series.

The final circuit:


The transistor shunt regulator circuit

An improved transistor regulator is the:
 TRANSISTOR SERIES REGULATOR
The series transistor regulator is a more-efficient design and caters for a high current load and wide fluctuations. It wastes almost no energy when no current is being taken by the project but the transistor must be heat-sinked when a high current is required.
A simple series regulator is shown in the diagram below.
It is effectively an EMITTER-FOLLOWER:


Simple series transistor regulator

The emitter of the transistor "follows" the base and is approx 0.7v below the base.
The base is fixed at 12v by the zener diode and the voltage to the project is 12v - 0.7v = 11.3v


THE TRANSFORMER
There is not a lot you can do about designing a transformer.
They are "off the shelf" components and you have to take the manufacturers specifications as accurate. But they are often misleading. Especially with small transformers (5VA to 30VA).
The size of a transformer indicates its VA rating (volt-amp rating).
There are basically three types of transformers:
1.The square-looking type made from "E's" and "I's" (or a solid ferrite material).
2. The toroidal-type, looking like a large doughnut and
3. The enclosed-type called a pot-core.
There are lots of variations and shapes, such as elongated-types to fit certain spaces or inductor-types that look look a choke.
But we will concentrate on three types and two different frequencies of operation.
The "E" and "I" type is used for low frequency (50 - 60Hz) and the ferrite type is used for high frequency (50kHz - 1MHz).
But the big problem is the data provided with some of them - especially "plug packs."
Some transformers are rated at 500mA, while some smaller types claim to be 500mA. This is an error and you have to be aware of false identification.
The VA rating of a transformer depends on its size in each category ("E" and "I" - toroidal and high frequency).
There is no "super transformer" that is 50% better than the others in the same style and you can accurately go by size, shape and weight for each category.
The largest and heaviest transformer (per VA) is the "E" and "I" type. The toroidal will deliver about 200 -300% more (watts) for the same weight and the high-frequency ferrite types will deliver 6 times to 10 times more (watts).

There are three types of secondary winding:
It can be a single winding, centre-tapped or two separate windings.
You can use a single diode for half-wave rectification or 2 diodes for full-wave from a centre-tapped secondary or 4 diodes in a bridge for full-wave rectification.
Half-wave rectification is very inefficient and is no longer used.
Full-wave is the best design.
The centre-tapped secondary was designed many years ago to get around the problem of PIV rating for diodes (see below).
The centre-tapped secondary (and 2 diodes) is not as efficient as a single secondary winding and 4 diodes because with the centre-tapped secondary, each winding is only delivering energy for a half-cycle and this means only half the volume of the secondary space of the transformer is being used. This means the secondary winding is thinner and has a higher resistance and higher copper losses. The only saving is the cost of 2 diodes.
The full-wave voltage doubler was also designed many years ago as a low-cost way to generate a high voltage for the accelerating anode on a Cathode Ray Tube.

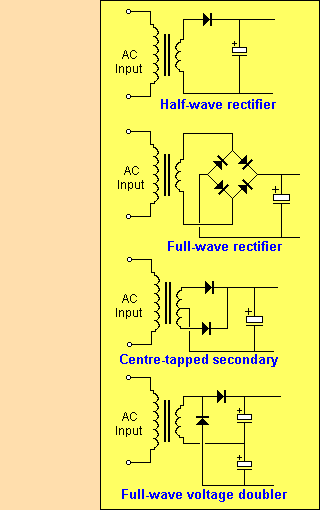

Here are 4 different ways to connect to the secondary of a transformer:

There are a number of reasons why four different circuits were designed.
In the early days of electronics, power supplies were designed to meet the requirements of valve amplifiers and these required a plate voltage of 285v or more. In the full-wave circuit, the PIV (peak-inverse-voltage) rating for each diode must be equal to at least twice the peak load voltage and since this was higher than some of the diodes in the early days, a number of alternatives were produced - such as the centre-tapped secondary.
The full-wave voltage doubler circuit was very clever as it produced a smoothed DC output from a low voltage winding. It was much cheaper to wind a lower-voltage winding as it had fewer turns of thick wire.
All these "clever designs" are now no longer needed as the voltage requirements of modern electronics is much lower and regulation is provided with IC's.
The only design you need to study is the Full-wave rectifier. All modern power supplies use a single secondary winding and a bridge rectifier (four diodes in a block that looks like a chip).

THE HALF-WAVE RECTIFIER
 The half-wave rectifier produces a waveform with a very large AC component called "ripple" and requires a lot of smoothing to make it acceptable for electronic circuits. By adding 3 more diodes in a "bridge" we can get "full-wave" rectification and this requires less smoothing.
For this reason the half-wave rectifier is no longer used.


THE FULL-WAVE RECTIFIER
 The full-wave rectifier delivers both the positive and negative part of each cycle to the input of the "electronics."  When we talk about a "full-wave rectifier" we mean the "bridge rectifier" made up of 4 diodes:

Two diagonally-opposite diodes pass the waveform to the output line during one half of the waveform and the other two diodes pass the signal to the output during the second half of the waveform.
At point "A", an electrolytic smoothes the pulses by charging and discharging at the appropriate times to create a fairly smooth waveform.
It is very important to make this waveform as smooth as possible (with the aid of a large electrolytic) as the "electronics" (the regulator) will improve the "smoothness" 1,000 times or more and if it starts fairly smooth, the end result will be very smooth.


 The smoothing effect of the electrolytic


 REGULATION
Regulation is one of the hidden words in power supply design.
It applies to both the output voltage of a power supply and a transformer.
When referring to a transformer, it is its ability to deliver a fixed voltage, over a wide range of current.
It is impossible for a transformer to maintain a constant output voltage when a load is applied as the secondary winding has a resistance (impedance) and the flux density changes.
The loaded voltage of some transformers can drop as much as 20% - 50% and unless there is a circuit to compensate for the change, we will get "hum'" "ripple," "drop-out" and faulty operation of the project.
To get around this voltage-drop, manufacturers add extra turns to the secondary and deliver a higher "no-load" voltage.
This means some transformers will produce 16-18v on no-load and drop to 12v when full current is being delivered.
The maximum voltage for CMOS chip is 16v and they will be damaged if supplied with 18v.
We need a circuit to take the 18v and convert it to a fixed voltage - preferably 12v or less.
The circuit is called a REGULATOR.
A regulator has the amazing ability to convert a high voltage to a low voltage and maintain it accurately over a wide range of current requirements - even when the input voltage is rising and falling.

There are two types of circuits:
Type A provides a constant voltage from a higher supply voltage.
For instance, a 7805 will provide a constant 5v, from a supply of 8v to 20v.
If the supply drops below 7v, the 5v rail will drop.
The Type A circuit can use a REGULATOR in the form of a component that looks like a power transistor:

It actually contains more than 30 transistors and requires only a few external components to create a complete power supply. Basically it operates by chopping the input voltage and delivering small amounts to the output. It is called a 3-terminal regulator or linear regulator.

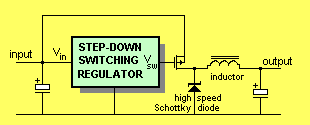

Type A circuits can also use switch-mode arrangements in which the output voltage is created via an inductor. The output voltage is entirely created by the energy from the inductor.

Type B circuits provide a constant voltage from a lower supply voltage.
This is called a step-up regulator. The voltage can be produced by charging a capacitor and placing this voltage on top of the rail voltage or it can be produced by passing a current through an inductor then turning it off and allowing the inductor to collapse and produce a high voltage. In all cases, the output voltage is monitored and accurately maintained.
That's why all these circuits are called REGULATED POWER SUPPLIES.

3-TERMINAL REGULATORS - also called Linear Regulators
The common name given to "chip" regulators is "3-Terminal Regulators." This has made designing power supplies very easy. Simply add a 3-terminal regulator and a few surrounding components and you have a regulated power supply.
But there are some hidden secrets.
The most important fact to remember is to prevent the regulator dropping out of regulation.
This means the input voltage must be 3v higher than the voltage you are delivering.
With very poor quality plug-packs, this can be quite a problem. They can drop below the required voltage when drawing a current. This will cause problems with the project and be very difficult to detect - unless you are aware of the problem!
3-terminal regulators work on the principle of delivering energy to the output in pulses.
When they are turned on, the voltage drop across the regulator is low and the heat generated is small. When they are off, the heat generated is zero.
In this way they can produce an accurate output voltage and high current demand, with minimal losses.
A typical 3-terminal regulator power supply is shown in the following diagram:



There are four important points to remember when designing a power supply:
1. The regulator must be close to the edge of the board so it can be attached to a heatsink.
2. The heatsink must also be attached to the PC board so that is does not move and allow the leads of the regulator to break.
3. The 2200u and both the 100n monoblocks must be mounted close to the regulator.
4. The input voltage must be higher than the output to allow for the voltage drop across the bridge and regulator. The minimum for a 5v output is 7v AC or 9v DC.
Note: It does not matter which way around the AC or DC supply is connected to the bridge as the bridge will automatically adjust for either polarity. This is one of the advantages of placing a bridge on the input of a project. It allows either-way connection to power the project.

INCREASING THE OUTPUT VOLTAGE
The output voltage of a supply can be increased by "jacking up" the voltage produced by the 7805. The way the 7805 works is this: It maintains a voltage of 5v between output and common terminal. If the voltage on the common terminal is increased (jacked up), the output voltage will be 5v higher. The 7805 always maintains 5v between output and common. The circuit below produces an output of 12v.


 "Jacking up" the 7805 regulator

Almost any voltage between 5v and 30v can be obtained by this method. This saves stocking the complete range of regulators.
The output voltage is determined by two resistors in VOLTAGE DIVIDER MODE. Five volts is always present across the 120R resistor and if another resistor is placed in series, it will have a proportional voltage across it. In the circuit above, 7v is developed across the 180R resistor, making a total of 12v on the output.
To increase or decrease the voltage, only one resistor has to be changed in the circuit above. The 120R is retained and the 180R is changed. If it is increased to 220R, the output voltage will be 14v, for a 330R, the output voltage will be 18v. The resistor in the common line can be a potentiometer. This will produce an adjustable output voltage. The dropper resistor for the LED will also have to be increased so the LED is not over-driven on the higher voltages.
A meter can be placed on the output to monitor the voltage and current taken by the load.
There is only one problem with an adjustable supply. The regulator must be heatsinked so it is capable of dissipating the heat for the worst condition. In addition, the input voltage must be sufficient to cater for the maximum output voltage.

ADJUSTABLE OUTPUT VOLTAGE

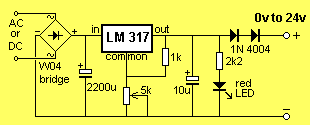

The output voltage can be adjusted (varied) from 5v to 24v via a potentiometer connected to the common line of the regulator. The input voltage and heatsinking of the regulator must be sufficient for the output voltage and current. The output may not deliver more than 100mA @ 5v due to the heat produced by the regulator if the input voltage is say 24v - 36v. This is one of the disadvantages of a variable power supply if this design.


THE LM 317 REGULATOR
The advantage of an LM317 regulator is the supply will go down to 1.2v. If you add two diodes (in series with the output line), the voltage will go down to 0v as shown in the following circuit:

HIGHER CURRENT
If you require more than 1 amp, the 7805 can be combined with other components to provide an output of up to 3 amps, with the circuit below. The current is switched through the TIP2955, so the 7805 can be run without a heatsink since it only regulates the voltage. Note the 3-amp diodes in the power supply.

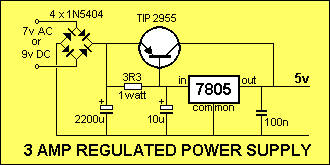

For currents greater than 3 amps, additional TIP 2955 transistors can be "piggy-backed" on top of the TIP in the circuit. If the gain of each transistor is approximately the same, the transistors will current-share the load and get equally hot.




POSITIVE AND NEGATIVE SUPPLY
A positive and negative supply can be generated from a single bridge by using a centre-tapped transformer:


 A NEGATIVE POWER SUPPLY
 A negative power supply can be produced with a 7905 voltage regulator. Three things to be remembered are:
1. Check the connections of the 7905 before fitting it.
2. Reverse the 2200u and 10u electrolytics and LED.
3. Reverse the bridge so the negative goes to the "in" pin of the 7905.

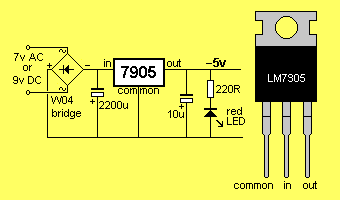

 The 7905 -5v regulated supply circuit

100mA POSITIVE REGULATORS
3-Terminal regulators are available in 100mA versions. They look like a small-signal transistor:


100mA NEGATIVE REGULATORS
3-Terminal regulators are available in 100mA  negative output versions. They look like a small-signal transistor.
Note: The pinout of the positive regulator is NOT the same as the negative regulator. The circuit will not work if the wrong regulator is fitted and the regulator can be damaged.


THE CONSTANT-CURRENT SUPPLY
 The voltage regulator can be wired to produce a constant output current. This is not suitable for some applications as many devices require a high current at start-up (motors and globes) while others require a varying current (amplifiers) for their operation.
However there are a few devices that need a constant current for their correct operation and one device is the Laser Diode.
The actual current requirement depends on the output of the diode and a standard 1 milliwatt type requires between 70 and 100 milliamp.
The characteristic voltage developed across the diode is less than 3v so that a 3-terminal regulator that goes down to 1.2v will be needed.

HOW THE CIRCUIT WORKS
By simply connecting a resistor between the output of the regulator and the load, and taking the common or "adj" terminal as shown below, the output current can be set by the value of the resistor.




It works like this: No current "comes out" the adjust terminal. It is a "sense" line. It merely acts as the 0v reference line for the regulator. The only side issue is the current taken by the regulator flows through the adjust line and this is approximately 10mA. But in our discussion, this is ignored.
The voltage between the output terminal and "adjust" is fixed a 1.2v (for this type of regulator). The 18R resistor in the circuit is called a voltage dropping resistor. It is designed to produce a voltage across it according to the current flowing. If it is 18R, the current flow will be: 1.2/18 = 66milliamps. If the resistor is 10R, the current needed to produce 1.2v across the resistor is: 1.2/10 = 120milliamps. If we choose 15R, the current flow will be 1.2/15 = 80milliamps.
The laser diode in the example above requires a current between 70milliamps and 100 milliamps. You can choose 15R or 18R for the voltage-dropping resistor.

How the 3-terminal regulator keeps the output current constant, even if the input voltage is increased:
Firstly, the current through the "common" or "adj" lead is only about 10mA and this will not come into the discussion.
If the input voltage is increased, the output voltage will (may) increase and this will allow the load (the laser diode) to take more current. The increased current through the 15R or 18R resistor will increase the voltage across it and this will be detected by the circuit inside the regulator. The circuit will "turn down" the output voltage and everything will be stabilised.
This type of circuit is needed to drive a laser diode from a battery supply. As the voltage drops, the constant-current circuit maintains the same current.
If the constant-current circuit is not included, the current to the laser diode would drop as the battery voltage falls and the laser diode would cease to operate if the current falls below a certain minimum.
All "Laser Pointers" have an inbuilt constant current circuit to maintain the operation of the laser.

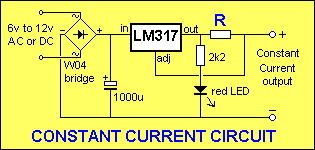

The output current in the following circuit is determined by the value of resistor R.

The input voltage must be at least 5v above the output voltage. This is due to the fact that the regulator need aout 4v between the in and out terminals so the components inside the regulator will perform their function plus 1.2v across resistor R.  The brightness of the indicator LED will depend on the voltage being supplied to the load. It does not indicate the current being delivered.  Use the table below for the following currents:

  Output    Current

R

50mA
100mA
150mA
200mA
500mA
1,000mA

 24R (use 18R or 27R)
12R (use 10R + 2R2)
8R (use 8R2)
6R (use 5R6)
2R4 (use 2R2)
1R2 (use 1R)


RIPPLE FACTOR
One characteristic of an electrolytic is rarely mentioned.
It is RIPPLE FACTOR.
This is the amount of current it is able to deliver without getting too hot.
It is one of the factors that determines the size of the electrolytic and since everything is being miniaturized, the Ripple Factor suffers.
If the size of the electrolytic is too small, it will warm up during its operation and dry out. The capacitance will reduce and all sorts of faults will develop.
One way to determine the suitability of an electrolytic is to feel it after the supply has been operating for a while. It it is hot, you can be sure it will suffer from overheating.
On the other hand, if it is cold, it could be dry.


One of the problems with the 3-terminal regulators described above is the fact that they are not very efficient and tend to get fairly hot.
A better design is a switching power supply using a switching chip plus an inductor or capacitor to produce the output voltage and current. This design is more efficient and has the ability to produce an output with a higher voltage or current than the supply (but not both at the same time!).

There are two types - Buck and Boost.
THE BUCK REGULATOR
The Buck regulator requires a high input voltage and delivers a low voltage.
It is called a BUCK CONVERTER, BUCK REGULATOR,  STEP-DOWN CONVERTER or STEP-DOWN SWITCHING REGULATOR.
A switching regulator, when in the buck mode, produces a voltage lower than the "in" voltage.

Buck switching-regulators have an internal high-frequency oscillator that turns a transistor (or FET) on and off and delivers bursts of energy to an inductor. When the transistor turns off, the energy from the inductor is stored in a capacitor.
It will maintain an extremely stable output voltage (with a sensing line that monitors the output) even though the current required by the project may fluctuate and the input voltage may rise or fall.
Buck switching regulators are available in 100mA, 1A,  5A plus other values.
A buck switching regulator will take 12v @ 500mA and convert it to 5v @1Amp. In other words it will take a high voltage at low current and convert it to a low voltage at high current.
A step-down switching regulator chip requires only a few external components to create a complete supply. Some of the components in the diagram below are inside the chip.
A sense line (not shown) is connected to the output to monitor the voltage and maintain stability.

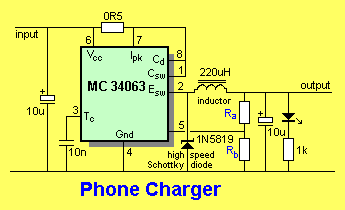

An MC34063 IC in a step-down switching circuit:

The output voltage is determined by the value (actually the ratio) of Ra:Rb.
The chip has a 1.25v detector on pin 5 and when the voltage across Rb is 1.25v the chip begins to shut-down.
The output voltage:

 THE BOOST REGULATOR - the step-up regulator

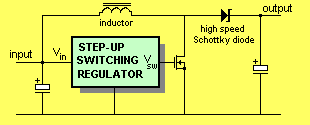

The BOOST switching regulator circuit has a low voltage supplied to it and delivers a high output voltage. (The output current will be lower than the input current)
It is called a BOOST CONVERTER, BOOST REGULATOR, STEP-UP CONVERTER or STEP-UP SWITCHING REGULATOR.

Boost switching-regulators have an internal high-frequency oscillator that turns a transistor on and off and delivers bursts of energy to an inductor. When the transistor turns off, the energy from the inductor is stored in a capacitor, via a high-speed Schottky diode
It will maintain a constant output voltage even though the current required by the project may fluctuate and the input voltage may rise or fall.

Boost switching regulators are available in 100mA, 1A,  5A plus other currents.
A step-up switching regulator chip requires only a few external components to create a complete supply.
Note: A boost regulator can produce a voltage higher or lower than the "in" voltage.
The MC34063 IC can be used in a circuit to produce a higher or lower voltage than the "in" voltage.

SERVICING POWER SUPPLIES
Most faults in a power supply are due to the electrolytics. They play a vital part in the performance of the circuit and after a few years they can exhibit a lower capacitance due to overheating and drying out.
When servicing a power supply the electrolytic is bridged with another (WHEN THE SUPPLY IS TURNED OFF), to see if it is faulty.
Unusual effects can be created when an electrolytic dries out and the quickest and cheapest thing to do is replace ALL OF THEM.
They can cause low output voltage, hum, ripple, hiccupping, distortion and sometimes complete failure of the power supply.
The next component to check is the power supply IC such as the regulator or control chip.
These are very reliable but can suffer damage if they are not heat-sinked correctly.
Many of them have in-built thermal shut down if the temperature rises excessively but if this feature is activated on a regular basis, the chip will gradually suffer from over-heating.
Another problem can be a thermal fuse or low-value resistor. These eventually suffer from heating and will fail. They are sometimes hidden in a fibre-glass sleeve.
Don't forget to check the plug-pack as a smaller version may have been substituted and will create all sorts of ripple problems.
Once you have covered these areas and the fault still persists, you will need to go to the rest of the project and determine if it is taking more current due to the fitting of additional devices.

CURRENT MEASUREMENT
It is very difficult to measure the current being delivered by a power supply.
If you insert a current detecting device, the additional resistance of the meter and leads will reduce the peaks. Even though the resistance of the meter is very small, the high current being taken by the circuit will cause a voltage drop to develop across the meter and the current peaks will be reduced.

That's why testing a power supply is very difficult.
Generally, there is very little to go wrong as it contains very few components, but when a fault develops, it can be quire technical.
This is due to the high currents and even short tracks on the PC board can introduce problems.
Make sure tracks have not burnt out and check the earth rail.
Sometimes a long earth rail will introduce problems.
For instance, a dry electrolytic on one of the rails may create a fault in a particular section that causes a low frequency hiccup and this is referred back to the power supply via another section.
Remember, a power supply is a LOW IMPEDANCE module and once this impedance is altered, a number of faults can develop.
Impedance is a very difficult thing to measure as it made up of so many factors.
That's why you have to use your skills when designing and servicing.
Don't forget to include 100n ceramic capacitors near the input and output of a 3-terminal regulator. They prevent it self-oscillating.
Make sure the tracks to a 3-terminal regulator are thick to reduce the impedance.
And make sure the 3-terminal regulator is adequately heatsinked.

HEATSINKING
One of the important points to remember is heatsinking the power supply regulator.
The amount of heat generated by a 3-terminal regulator depends on two factors:
1. The current being delivered to the project, and
2. The voltage delivered to it via the transformer or plug-pack.

We will take this simple example:
A 12v plug-pack is powering an audio amplifier project and the output is distorted.
The 300mA plug pack is replaced by a 500mA unit and the audio is perfect.
But the regulator gets hot and shuts down.
What is the problem?
The larger plug pack has better regulation. It is capable of supplying a higher voltage to the regulator - and thus a higher current.
The regulator is capable of maintaining a high rail voltage and the amplifier draws a higher current.
These two factors cause the regulator to dissipate a higher wattage and it heats up excessively.
The only solution is to increase the size of the heatsink.

CONCLUSION
 This page has described power supplies up to about 1amp. These are cheap and easy to design as transformers, diodes and 3-terminal regulators are capable of delivering 1amp.
This is the absolute maximum current as low-cost diodes are rated at 1amp and a 1amp transformer is rated at one-amp AC! This is only 0.707amp DC as 12v AC becomes 16v DC and if you try to deliver 16v DC at 1 amp, the wattage will overload the transformer. It is not advisable to deliver more than 700mA on a continuous basis, for this reason. Many 1amp diodes are really only capable of delivering 700mA. When the current through these diodes is about 500mA, the voltage across them is about 0.7v. When the current is 700mA, the voltage-drop is about 0.9v. When the current is 1amp, the voltage-drop increases to about 1.2v and they get extremely hot.
Once you get over 1 amp, the design of a power supply becomes more critical.
The next page covers more (very interesting) power supply features . . .


Next Page
